Cell Culture Chamber Slides: How to Choose the Right Format

Choose cell culture chamber slides by matching the number of wells, growth area, working volume, glass substrate, cell-attachment needs and imaging method to your experiment. A 1-well slide provides the largest continuous culture area, a 2-well format supports paired comparisons, and 4- or 8-well slides let researchers test more conditions while using less reagent per well. Chamber slides combine cell culture and microscopy on one platform. Cells can be seeded, treated, fixed and stained on the slide, reducing transfer steps in immunocytochemistry, immunofluorescence, toxicity studies and other imaging workflows.

Cell Culture Chamber Slide Formats at a Glance

These values are listed for the Biologix chambered glass slides offered through Astor Scientific. The suitable seeding density and working volume should be confirmed for the specific cell type, incubation period and protocol.

Compare Chamber Slides from Astor Scientific

Product pages can be used to compare specifications. Review the current listing or contact Astor Scientific to confirm availability, packaging and procurement options.

What Is a Cell Culture Chamber Slide?

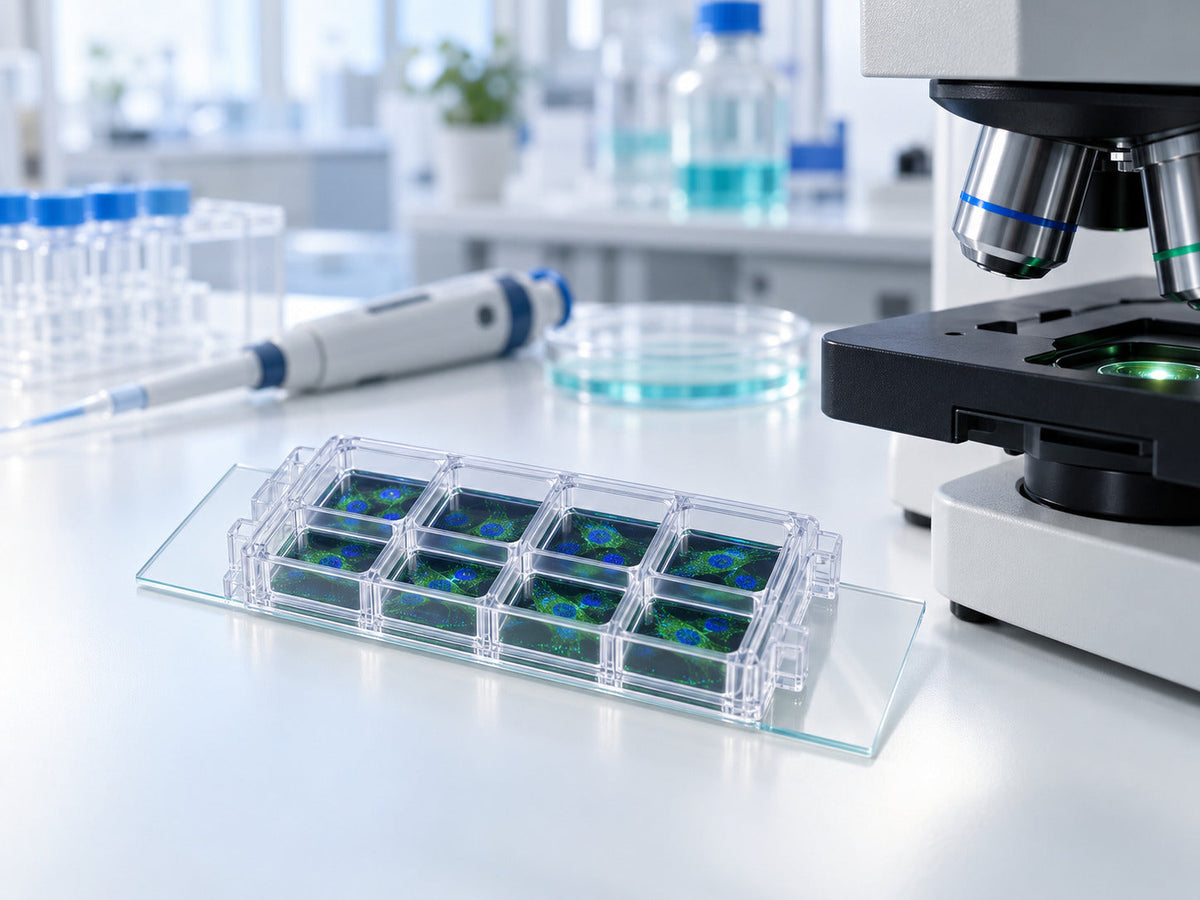

A chamber slide combines culture wells with a microscope slide so cells can move through culture, treatment and imaging on one surface. The listed NEST and Biologix formats use removable polystyrene chambers on glass without chemical adhesives.

How Many Wells Should You Choose?

1-Well Chamber Slides

A 1-well slide provides the largest growth area and working volume. Choose it for one condition, larger cell populations, protocol development or imaging that benefits from a broad continuous area. It uses more medium and staining reagent per condition than multiwell options.

2-Well Chamber Slides

Two chambers suit a control-versus-treatment comparison, two cell lines or two staining conditions. The Biologix and NEST specifications provide 4.55 cm² growth area per well with a lower working volume than the 1-well format.

4-Well Chamber Slides

A 4-well slide balances throughput, imaging area and reagent consumption. It supports multiple treatments, concentrations, time points or replicates while retaining comfortable pipetting access.

8-Well Chamber Slides

Among the 1-, 2-, 4- and 8-well formats compared here, an 8-well slide provides the highest condition density and uses a smaller working volume per condition. It suits dose-response panels, controls and staining optimization with valuable antibodies, probes or growth factors. Consistent seeding, accurate pipetting and evaporation control are important.

Match the Format to Your Experimental Design

Well count should be selected from the complete experimental layout, including treatments, controls, replicates and time points. A study with one control and three treatments requires four conditions. A 4-well slide can hold one set, while an 8-well slide can hold duplicates or a second cell line. Independent biological replicates may require multiple slides rather than neighboring wells on one slide.

Create the final experiment map before procurement. This reveals how many slides are required per run and lets buyers compare pack quantities using complete experimental sets rather than slide price alone.

Calculate Cells and Reagents Before Purchasing

Growth area and working volume determine cell and reagent needs. If a protocol specifies cells per cm², multiply that density by the listed growth area to estimate the cell input for each well. The calculation will differ substantially between 0.98 cm² and 9.40 cm² formats. Apply the same planning to medium, coating reagent, fixative, blocking solution and antibody mixtures. An 8-well format can conserve valuable antibodies or fluorescent probes, while a larger well may be more efficient when cell yield or a broad imaging area is the priority. Estimate cells, culture medium, coating solution, staining reagents, controls, replicates and total slides for one complete experiment. This converts format selection into a measurable purchasing decision and helps avoid unused culture area or underestimated reagent demand.

Glass Material and Imaging Compatibility

Glass chamber slides support direct microscopic observation and post-staining mounting. Astor Scientific’s NEST listing specifies a 1.0 ± 0.1 mm borosilicate glass slide with no surface treatment, while the SARSTED x-well listings specify soda-lime glass. The Biologix product combines a glass bottom, polystyrene chamber and polypropylene holder. Confirm upright or inverted microscope configuration, objective working distance, resolution, imaging mode, mounting requirements and stage fit. For high-resolution or oil-immersion imaging, verify slide thickness and objective compatibility. Laboratories planning a separate mounting workflow can also review Astor Scientific’s cover glasses collection and confirm size, thickness and availability for the selected protocol.

Surface Treatment and Cell Attachment

The NEST page states that its glass bottom has no surface treatment. Cell attachment therefore depends on the cell line, glass properties, serum, coating and culture conditions. Robust adherent cells may attach under an established protocol, while attachment-sensitive cells may benefit from a validated coating such as collagen, fibronectin, laminin or poly-D-lysine. Confirm whether the slide is untreated, culture treated or precoated. For in-house coating, compare coating volume, incubation time and consistency across formats.

Need Help Selecting a Chamber-Slide Format?

Compare well count, growth area, working volume, glass material and cell-attachment requirements for your imaging workflow.

View Chamber-Slide Specifications | Contact Astor Scientific

Removable Chambers and Staining Workflow

A removable frame allows cells to remain on the same glass surface from culture through imaging. The NEST and Biologix listings describe an easy flip-open disassembly process and no chemical adhesives. The SARSTED x-well products also list removable frames and slip-on lids. Follow the validated sequence for culture, treatment, fixation, staining and frame removal. Handle the slide gently, prevent drying and use a mounting medium compatible with the stain or fluorophore.

Fixed-Cell vs Live-Cell Imaging Requirements

For fixed-cell immunofluorescence or immunocytochemistry, prioritize glass compatibility, frame removal, coverslipping and resistance to the selected fixatives and stains. A removable chamber provides a direct transition from culture to a mounted microscope slide. Live-cell observation requires confirmation of temperature and CO₂ control, objective access, stage fit and imaging duration. Medium depth and working volume can influence focus stability and evaporation during extended imaging. Selecting the imaging endpoint before procurement helps ensure that the culture format also fits the final microscope workflow.

Sterility and Contamination-Control Requirements

Biologix chambered slides are listed as EO sterilized, non-pyrogenic, non-cytotoxic and free of DNase, RNase and human DNA. The SARSTED listings describe sterile, non-pyrogenic/endotoxin-free and non-cytotoxic products intended for adherent-cell workflows. Match these attributes to the protocol and confirm packaging integrity, shelf life, storage conditions and tray configuration.

Cell Culture Chamber Slide Buying Checklist

Before selecting chamber slides, confirm:

• Number of experimental conditions and replicates
• Growth area and working volume per well
• Cell type and expected attachment behavior
• Required surface treatment or coating
• Glass composition and thickness
• Microscope, objective and stage compatibility
• Removable-chamber design
• Sterility and purity requirements
• Lid style and evaporation control
• Fixation, staining and mounting workflow
• Pack and case quantity
• Current availability and required delivery timeline

This checklist connects well count with the culture and imaging workflow.

Compare Cost per Experimental Condition

The lowest price per slide does not always deliver the lowest cost per usable condition. Compare the number of wells actually used, premium-reagent volume, replicates accommodated and analyst handling. An 8-well slide may provide strong value for compact screening because more conditions share one slide and staining volumes are lower. A 1- or 2-well slide may offer better value when the experiment needs greater cell yield, a broader imaging area or easier physical access. For recurring work, estimate monthly consumption and compare pack quantities with storage and shelf-life needs. Procurement teams can also ask whether the selected format can be supplied consistently for future experiments.

Select Cell Culture Chamber Slides with Astor Scientific

Astor Scientific provides specification pages for 1-, 2-, 4- and 8-well chamber slides from Biologix and NEST, along with removable-frame SARSTED formats. Researchers can compare growth area, working volume, glass substrate, cleanliness attributes and packaging before choosing a potential format. For a more useful procurement discussion, share the cell type, number of conditions, required working volume, imaging method, preferred coating and monthly slide usage with the team.

Compare Cell Culture Chamber Slide Formats

Review 1-, 2-, 4- and 8-well options or ask about current availability and format compatibility.

Ask About Availability

Researchers building a broader workflow can also read Cell Culture Basics: Types, Media and Equipment for planning culture conditions and essential laboratory equipment.

Frequently Asked Questions

What are cell culture chamber slides used for?

They allow researchers to culture, treat, fix, stain and image cells on one slide. Common applications include immunocytochemistry, immunofluorescence, toxicity studies, virus research and microscopy-based cell assays.

Should I choose a 4-well or 8-well chamber slide?

Choose 4 wells for a larger growth area and easier handling per condition. Choose 8 wells when more conditions and lower reagent use are priorities. Confirm that the working volume matches the protocol.

Can chamber slides be used for adherent cells?

Yes. Chamber slides are widely used for adherent cells. Confirm whether the glass is treated or untreated and add a validated extracellular-matrix coating when the cell type requires enhanced attachment.

When should the chamber be removed from the slide?

The chamber is typically removed after cell culture and fixation, although the exact point may vary with the staining procedure and product instructions. Follow the validated protocol, keep the sample hydrated during relevant steps and handle the glass slide gently.

Are glass chamber slides suitable for fluorescence microscopy?

Glass chamber slides can support fluorescence microscopy. Confirm glass thickness, autofluorescence, objective working distance, mounting medium and coverslip requirements for the selected imaging system.

Conclusion

The right cell culture chamber slide connects culture scale with imaging needs. A 1-well format maximizes continuous growth area, 2 wells support paired comparisons, 4 wells balance area and throughput, and 8 wells create reagent-efficient multi-condition experiments. Glass material, surface treatment, removable-frame design, working volume, sterility and microscope compatibility complete the decision. Comparing these specifications before procurement helps laboratories build an efficient path from cell seeding to staining and microscopy.
