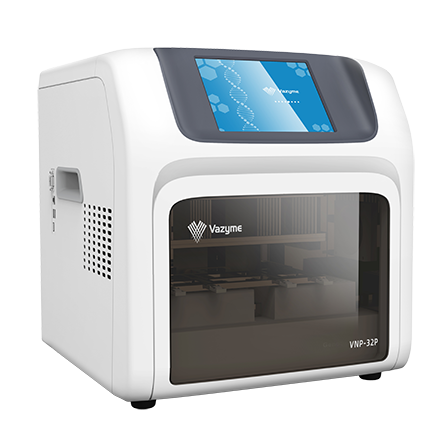

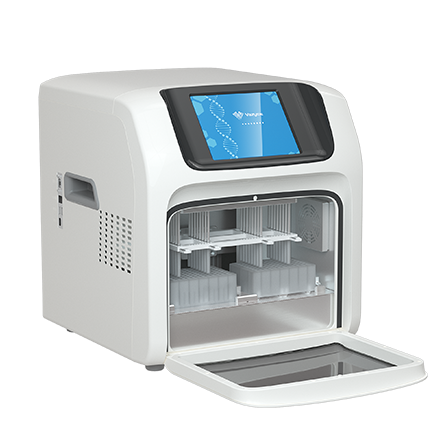

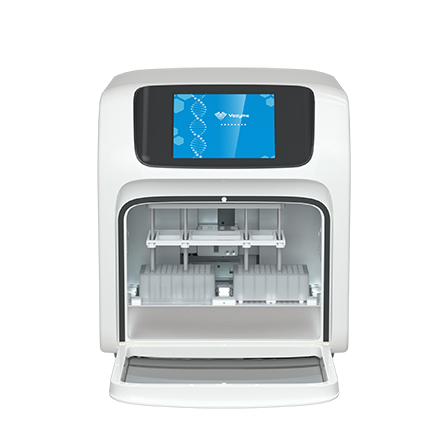

VaPura 32 Automated Nucleic Acid Extraction System
Product Description
VaPura 32 is a high-throughput and high-precision automated nucleic acid extraction system used together with prepackaged extraction reagents based on silica-coated superparamagnetic beads to extract and purify nucleic acids from blood, tissue, cells, body fluids, bacteria, viruses, and other biological samples.
The system purifies and enriches nucleic acids by utilizing magnetic rods to capture, transfer, and release magnetic beads. Featuring a highly automated, fast, and simple workflow, VaPura 32 is an ideal solution for molecular diagnosis and animal disease detection.
Features
- Simple & Efficient Workflow
Simply add the sample and start the preset program. VaPura 32 performs fully automated nucleic acid extraction with a one-button operation.
Recovery rate is higher than 95%, supported by strong magnetic force adsorption of magnetic beads and permanent magnet technology.
The built-in UV module and filtered fan system help reduce the risk of contamination during operation.
If power is interrupted during operation, the system resumes the extraction process after restart, helping prevent sample loss caused by unexpected power failure.
Parameters
The technical specifications below summarize the key operating parameters of the VaPura 32 automated nucleic acid extraction system.
|
Parameter
|
VaPura 32
|
|
Principle
|
Magnetic Beads Method
|
|
Sample throughput
|
1～32
|
|
Compatible consumables
|
96 deep well plate
|
|
Processing volume /μL
|
20～1000
|
|
Difference between
purification repeats
|
CV≤5%
|
|
Heating temperature
|
Room temperature～120℃
|
|
Temperature accuracy
|
±1℃
|
|
Operation interface
|
8-inch color touch screen,can be connected to external mouse
|
|
Internal procedures
|
500 programs can be stored
|
|
Program management
|
Add,edit,save as,delete,program mode
|
|
Instrument interface
|
3 type A USB,1 Ethernet port,1 DB9 debug interface
|
|
Network
|
Wi-Fi function
|
|
Disinfection
|
UV disinfection
|
|
Maximum input power
|
500 W
|
|
Dimensions(W×D×H)
|
412 mm×410 mm×430 mm
|
|
Weight(kg)
|
30 kg
|
Workflow
Automated Nucleic Acid Extraction Workflow
VaPura 32 provides a fast, simple, and highly automated workflow for nucleic acid extraction.
Storage
Storage: 15–25°C
Transportation: Room temperature
FAQ
1: What is VaPura 32 used for?
VaPura 32 is designed for automated nucleic acid extraction and purification across a broad range of research applications, including genomics, infectious disease research, NIPT projects (cfDNA), plant science, and FFPE tissue analysis and other molecular biological researches.
2: What sample types are compatible with VaPura 32?
VaPura 32 supports blood, animal tissue, cultured cells, plants (leaves, roots, seeds, fruits, fungi), body fluids, swabs, FFPE tissue sections, stool, soil, and other biological samples.
3: How does the system purify nucleic acids?
The VaPura System employs magnetic bead-based extraction technology. Integrated magnetic rods adsorption, transfer, and release magnetic beads through sequential lysis, wash, and elution steps, enabling fully automated nucleic acid purification without the need for pipetting, centrifugation or vacuum manifolds.
4: What contamination control features does the VaPura 32 include?
Yes. VaPura 32 is equipped with an integrated UV decontamination system designed to minimize cross-contamination between runs.
5: How does VaPura 32 respond to a power interruption?
VaPura 32 resumes operation after power is restored, helping avoid sample waste caused by unexpected power failure
